Piper Air Vent Low Profile / Flange Retainer – PA28, 32, 34

Price range: $27.00 through $144.00

+ Free Shipping

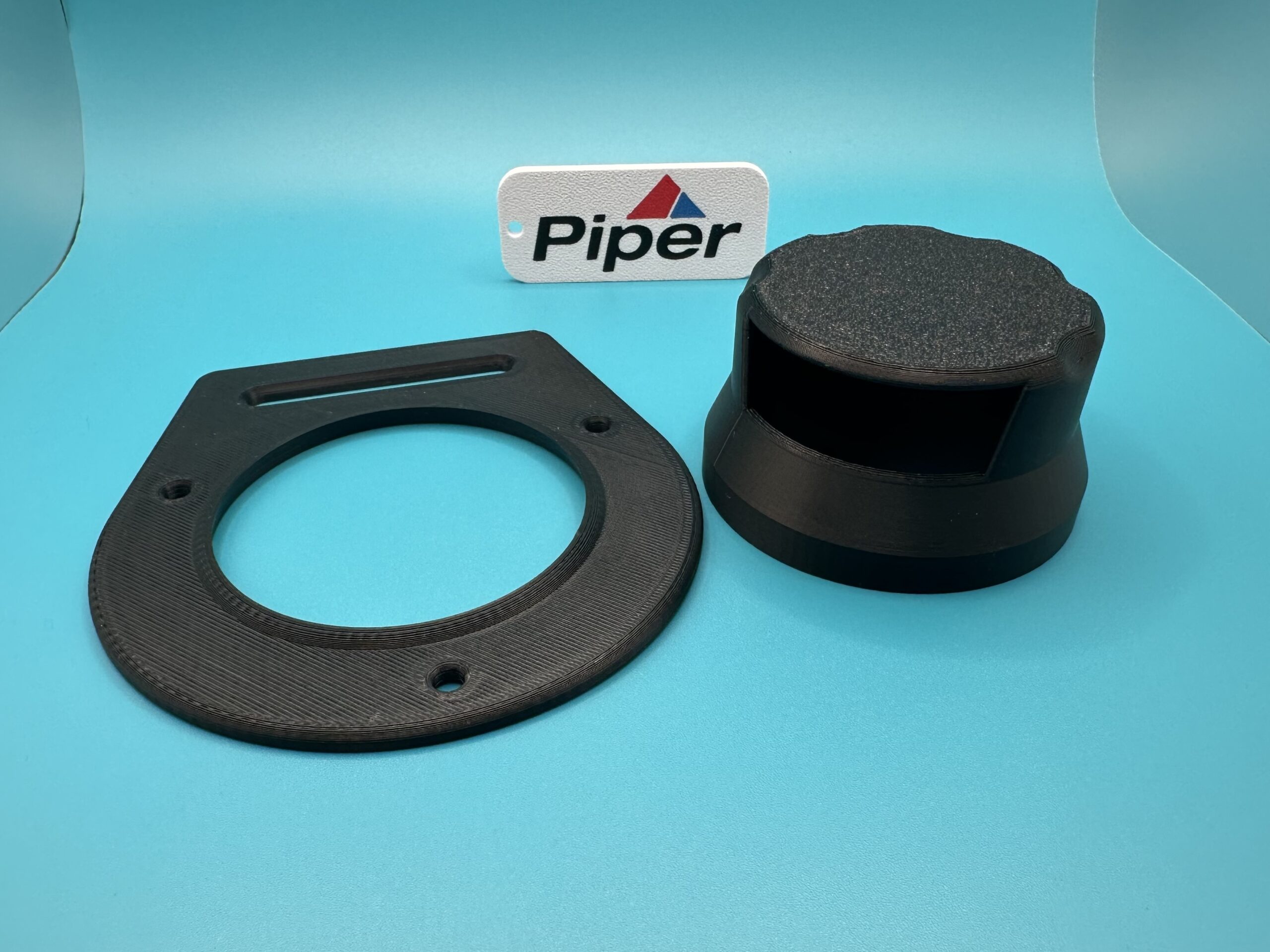

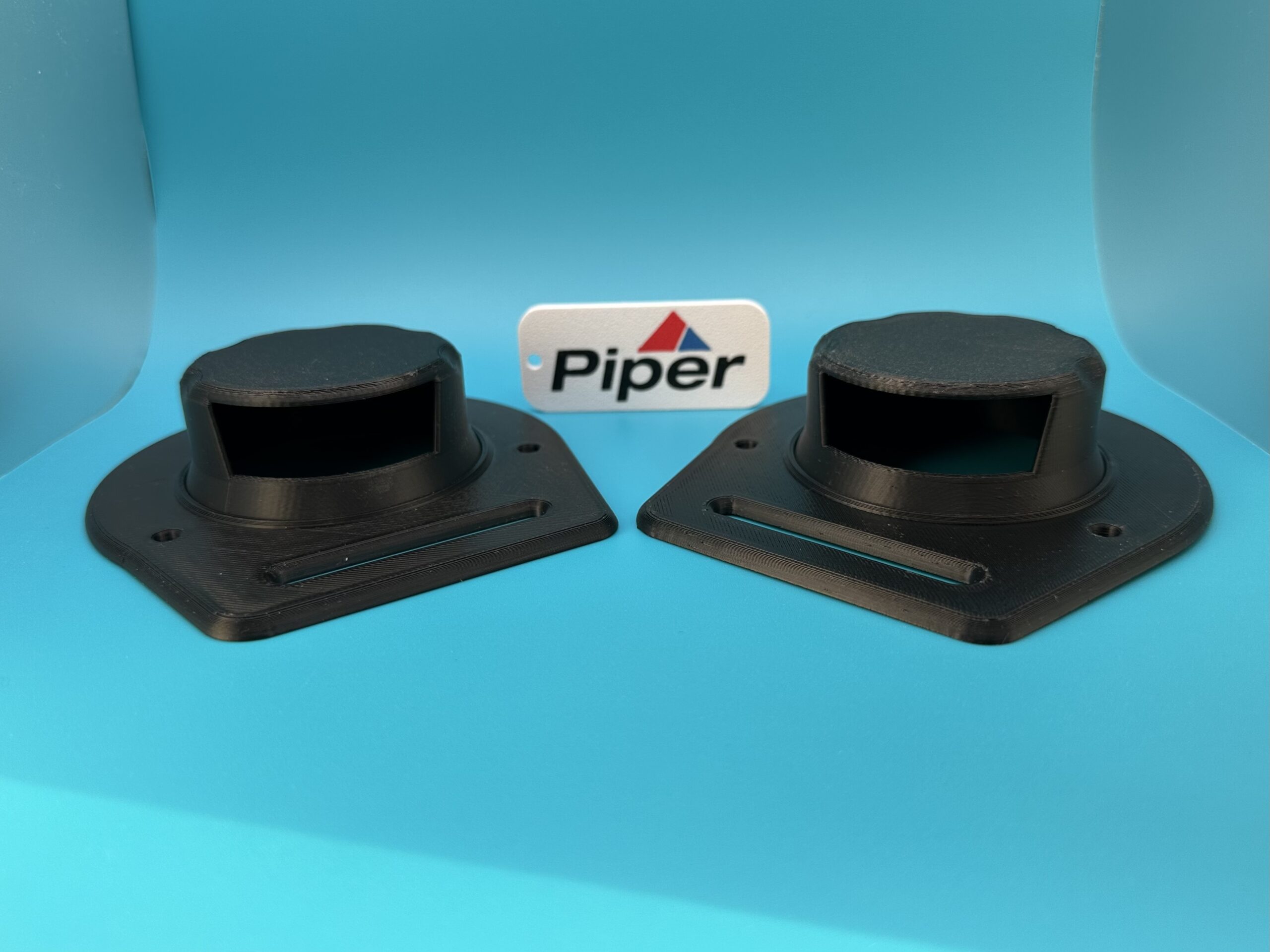

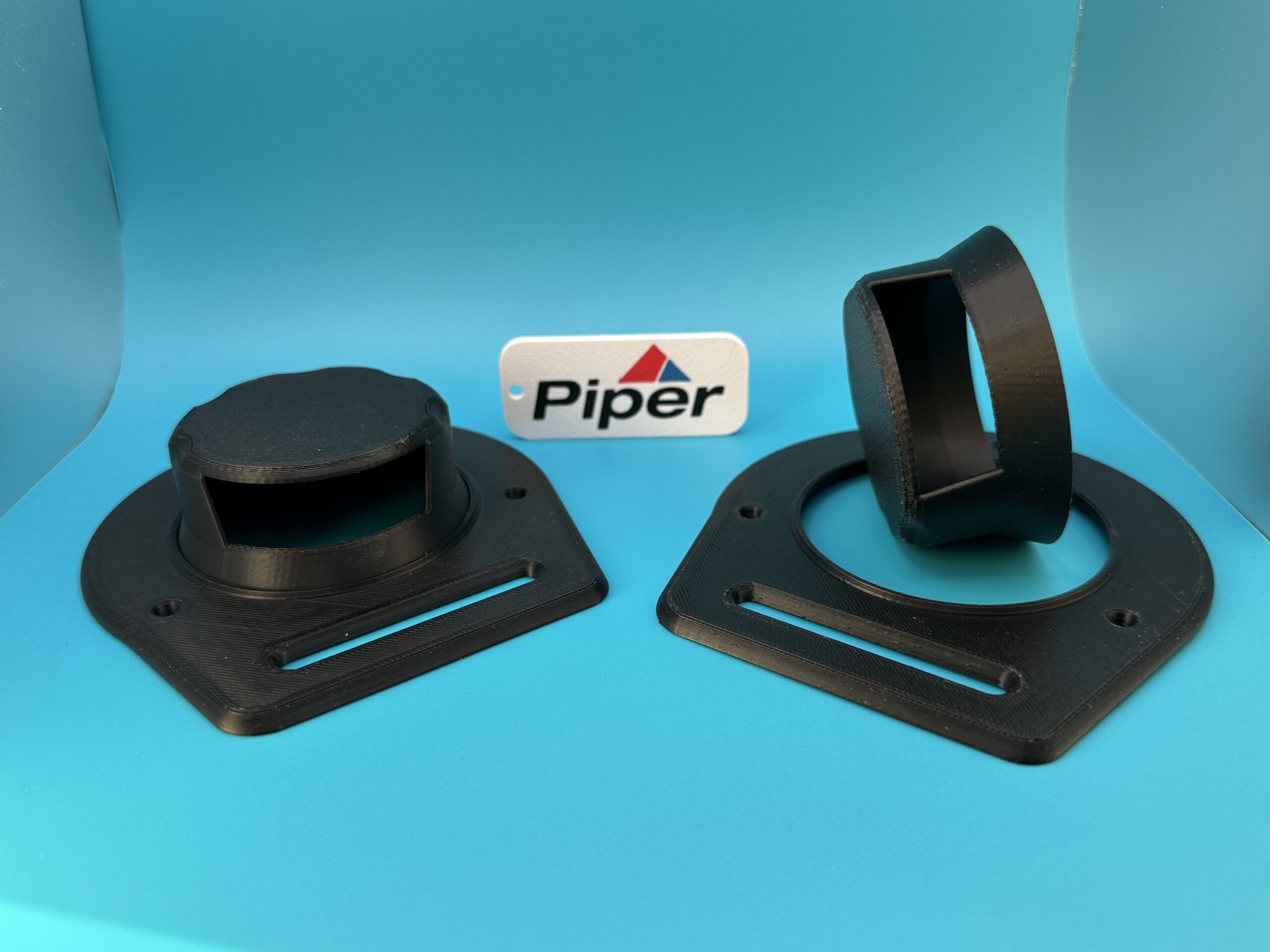

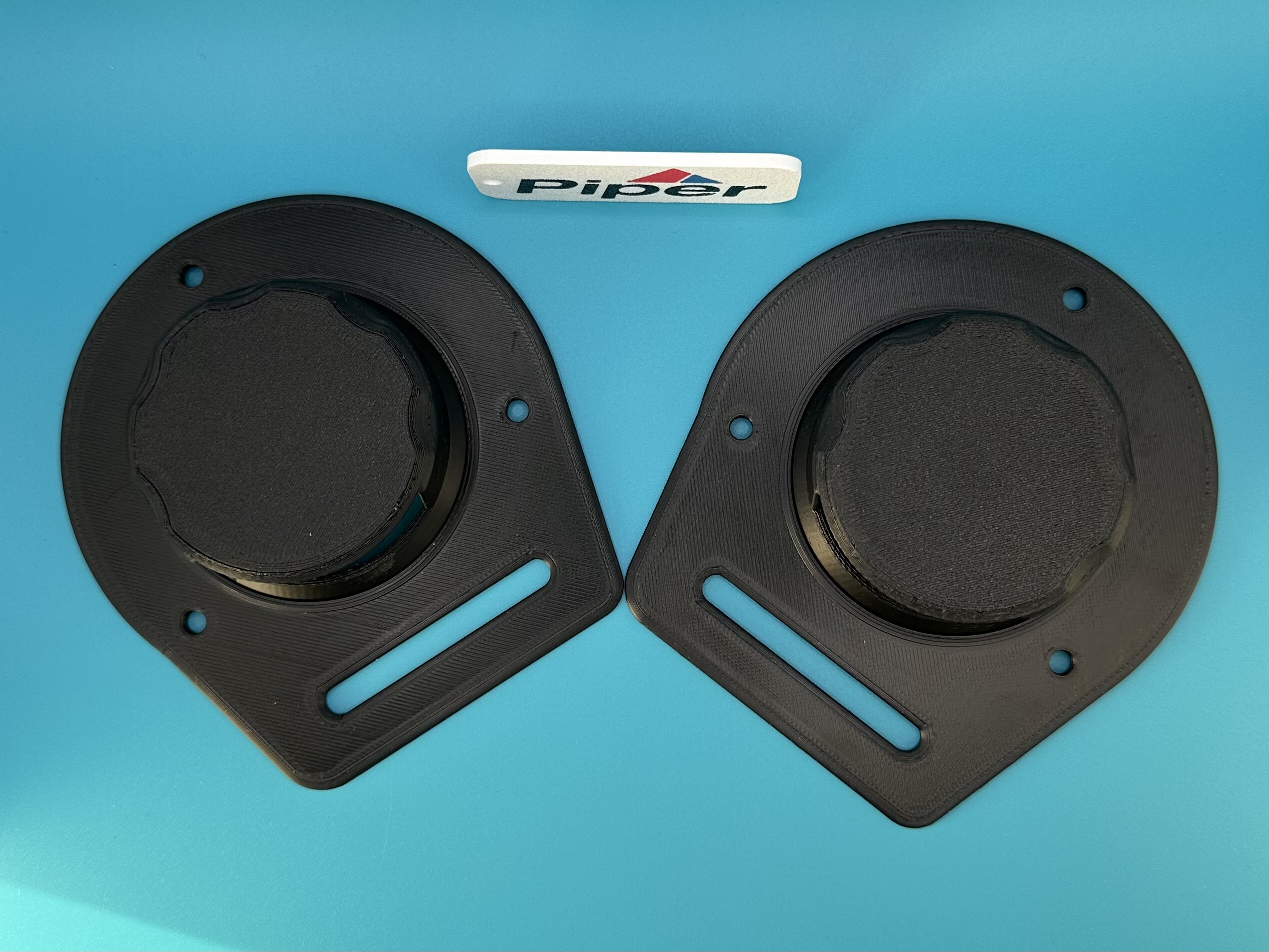

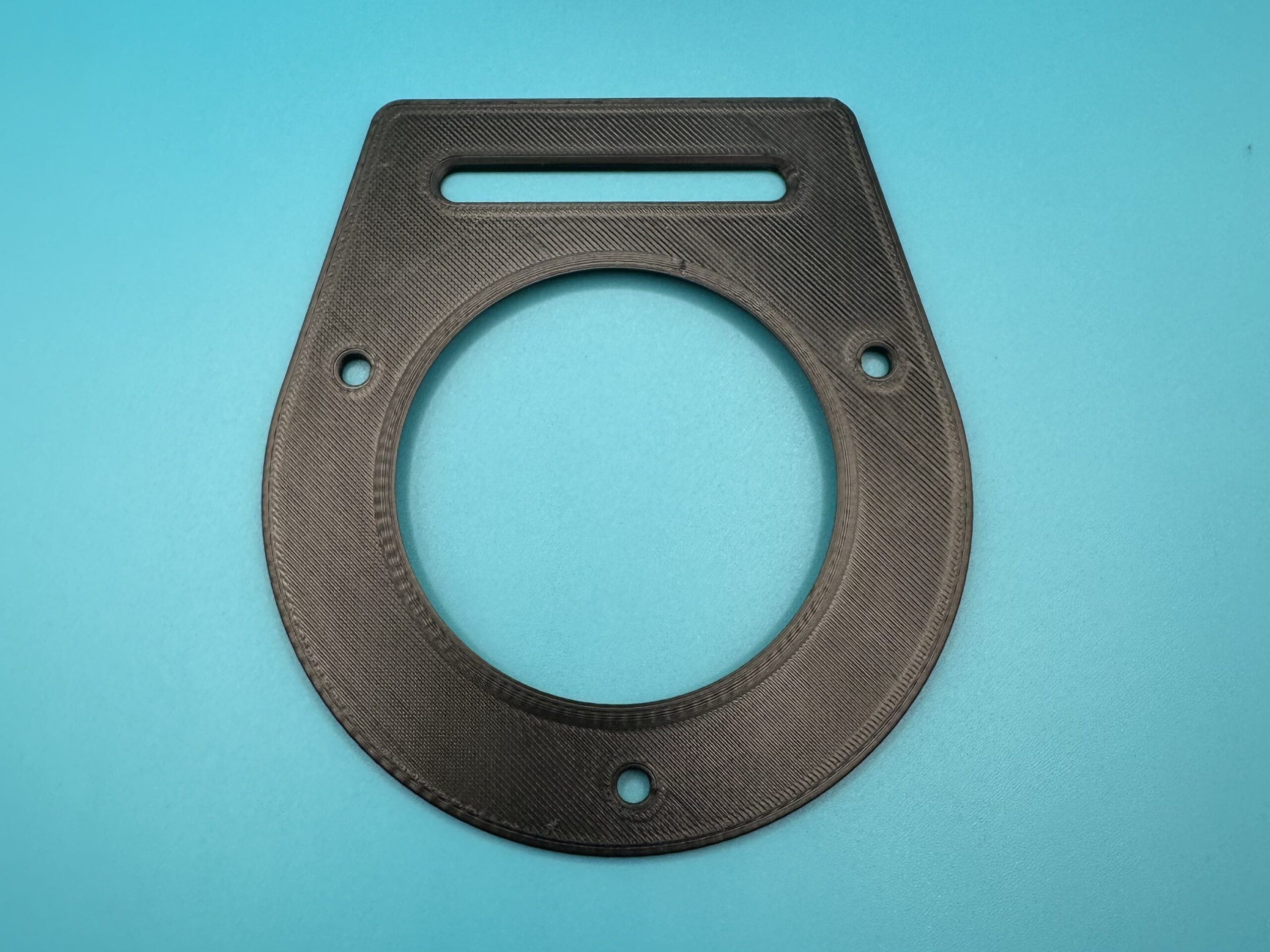

Low-profile vent retainer for Piper aircraft. Replaces cracked or missing flange retainers. Multiple configurations available.

SKU: piper-air-vent-retainer Category: Tag:

Materials

  • Heat-resistant PETG construction
  • UV resistant formulation
  • Snap-fit retention tabs
  • Dimensionally stable in cockpit environments

What's Included

  • Single Retainer: 1 × retainer/flange ring
  • Dual Retainer: 2 × matching retainers
  • Full Set (4): 4 × retainers for full cockpit

Design

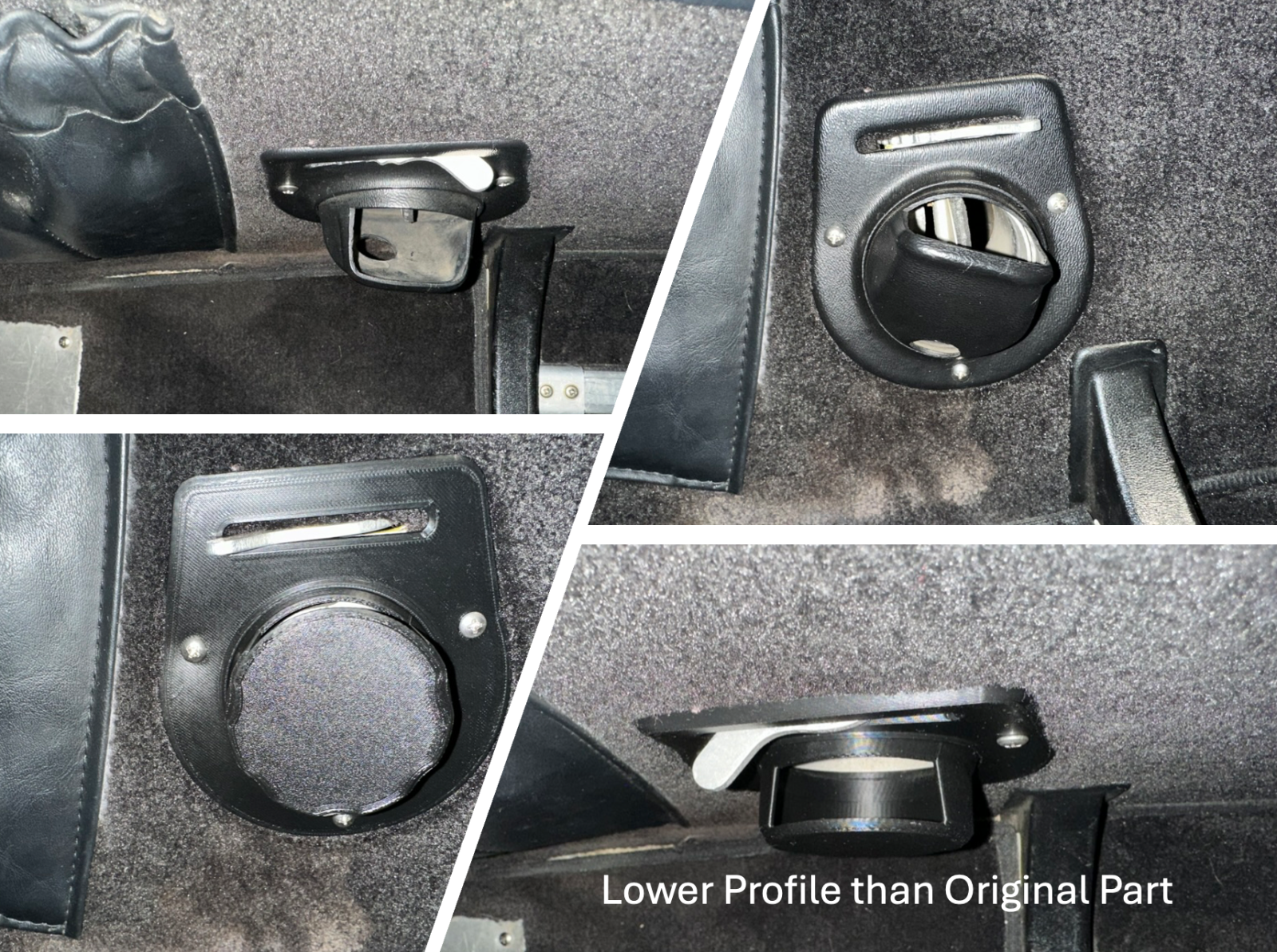

  • Low-profile lip sits flush with vent trim ring

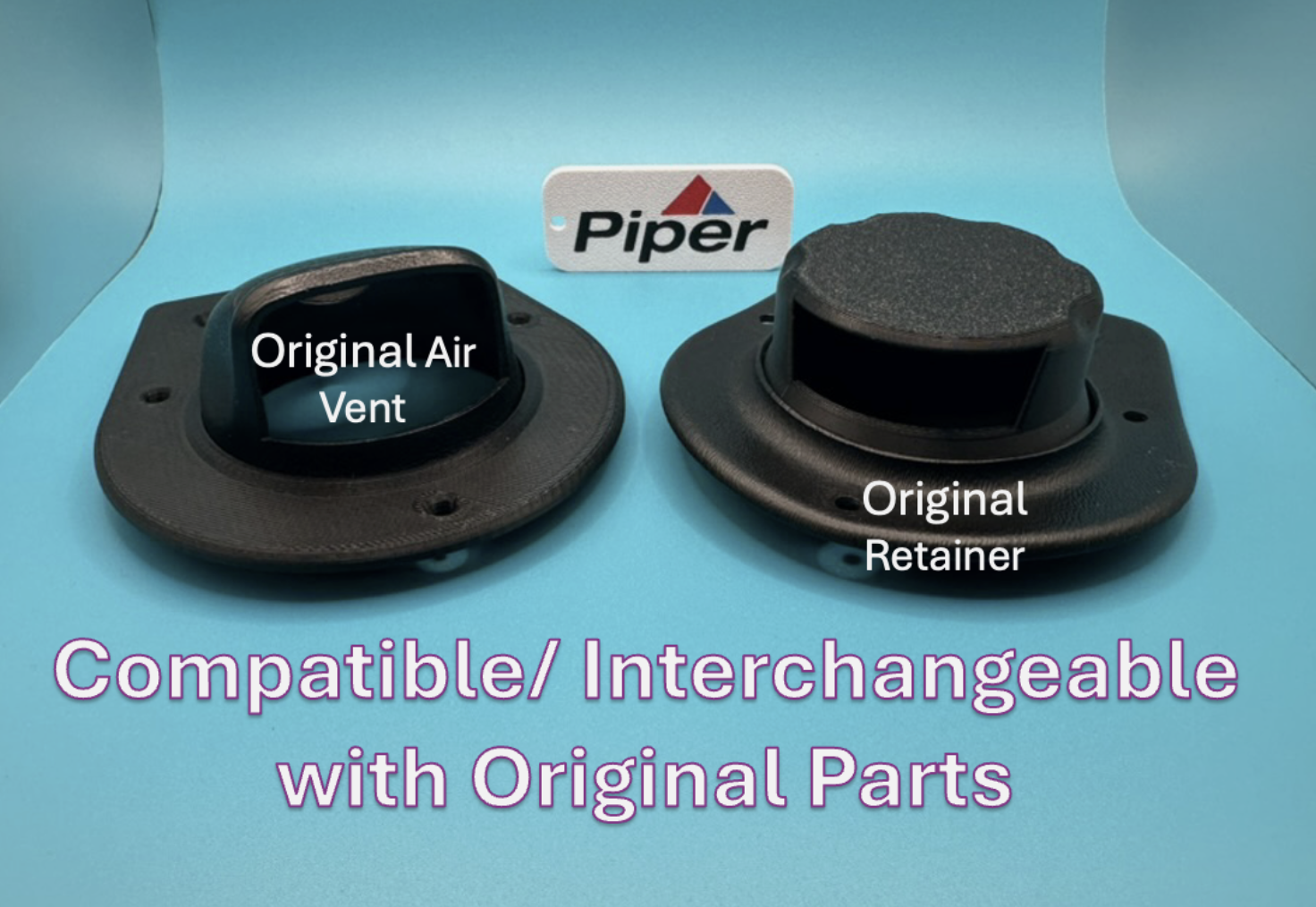

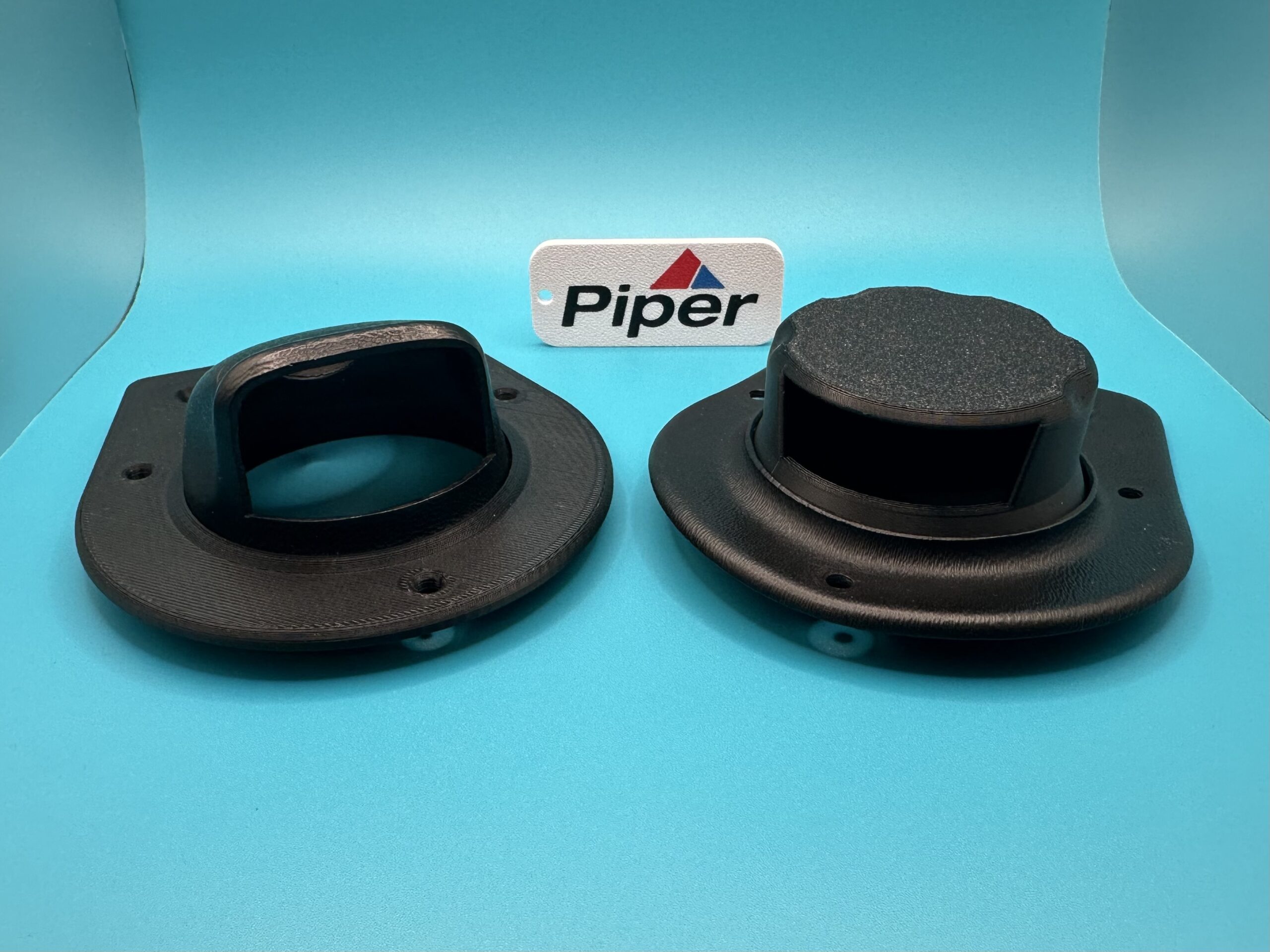

  • Direct replacement for OEM cracked plastic
  • Matches original vent opening geometry

Shipping

  • Shipped from Havre de Grace, MD
  • Standard USPS First Class (2–5 days)
  • Priority Mail available at checkout
  • Ships within 2–4 business days

This retainer is designed for the standard air vent openings used across the Piper PA-28 family and related airframes. The aircraft listed below have been verified for fit. If your aircraft is not listed, please contact us before ordering so we can confirm compatibility.

Aircraft
Model
Notes
Fit
PA-28 Cherokee / Warrior / Archer
All variants
Standard vent opening
✓ Verified
PA-32 Lance
PA-32R-300
Standard vent opening
✓ Verified
PA-32R Lance II
PA-32RT-300
Standard vent opening
✓ Verified
PA-34 Seneca
All variants
Standard vent opening
✓ Verified

Not sure if this fits your aircraft? Contact us with your make, model, and year and we'll confirm before you order.

1

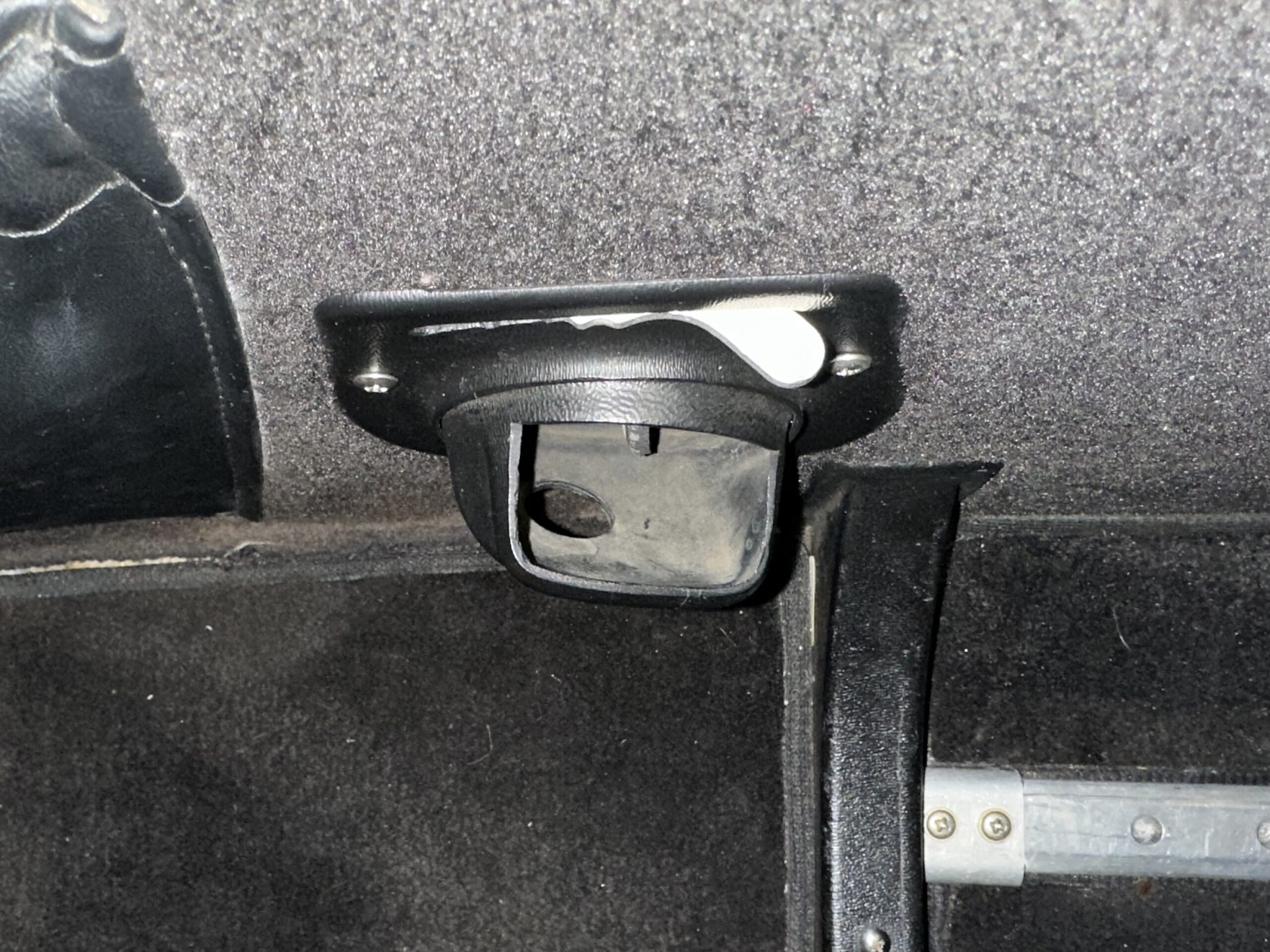

Identify the failed retainer

Locate the cracked, brittle, or missing vent retainer flange in the cockpit. Note whether the retainer has fully separated from the vent trim ring or is still partially in place.

2

Remove the old retainer

Remove the 3 Phillips head screws holding the retainer clip in place around the vent opening. Once the screws are out, the retainer flange will lift free. Carefully remove any remaining cracked plastic fragments and clear the vent opening of debris.

3

Clean the vent opening

Wipe the vent opening and surrounding trim ring with a clean cloth. Ensure the seating surface is free of dust, oil, and plastic fragments so the new retainer seats flush.

4

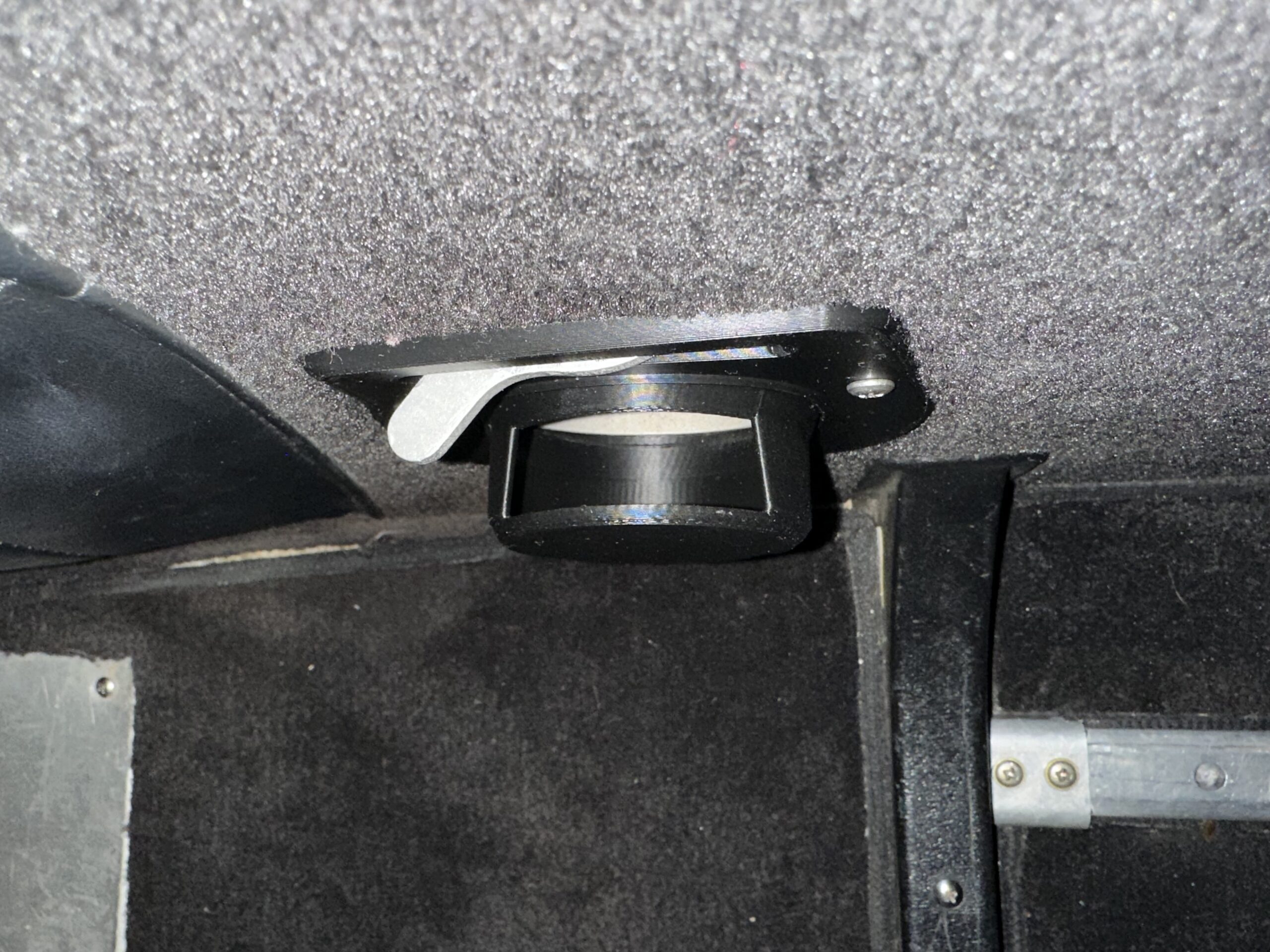

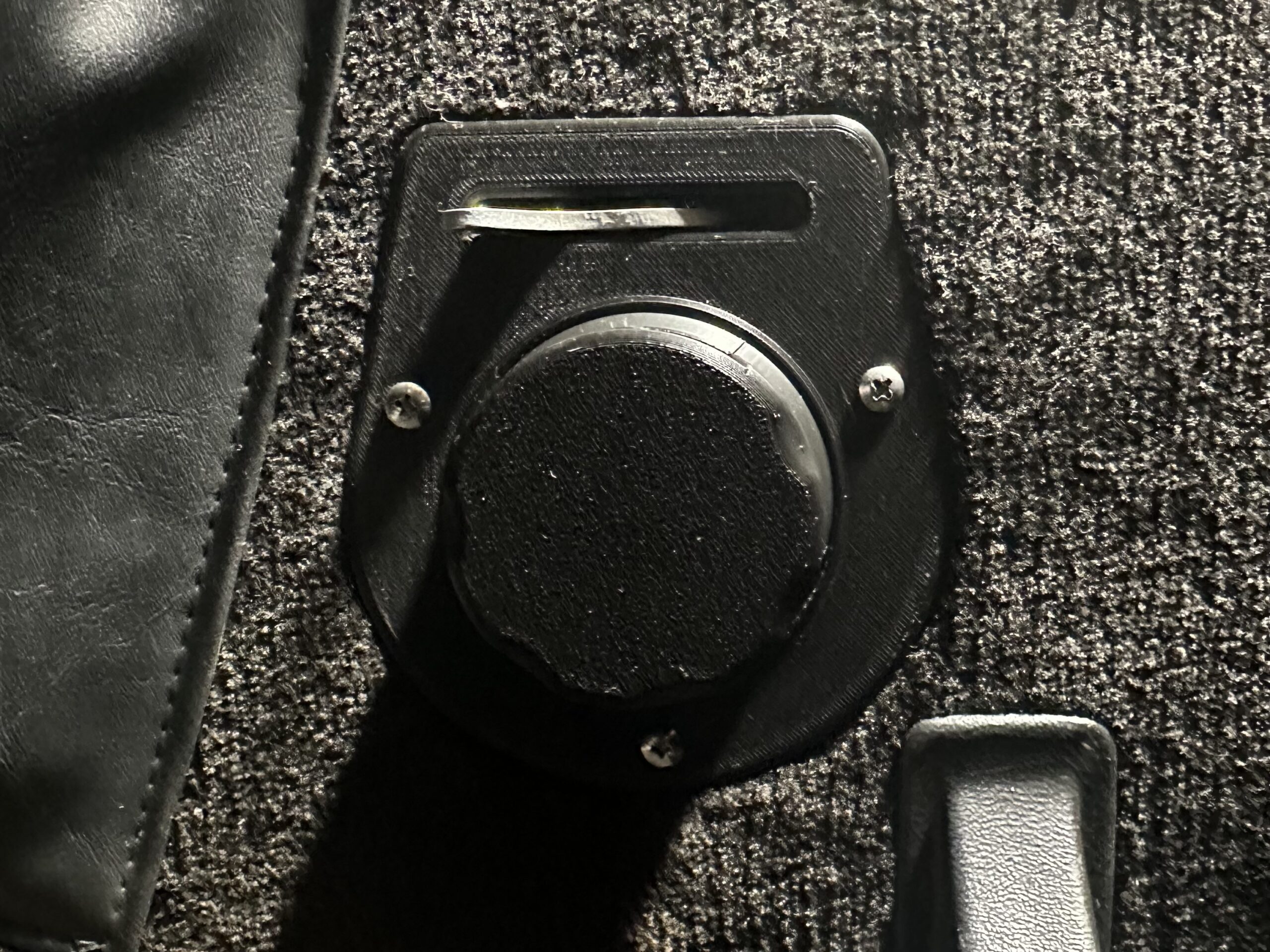

Secure the new retainer

Align the replacement retainer with the vent opening and reinstall the 3 Phillips head screws. Snug them down evenly — do not overtighten. Verify the low-profile lip sits flush with the vent trim ring on all sides.
